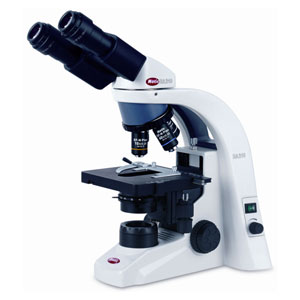

BA210 BINOCULAR COMPOUND MICROSCOPE W/INFINITY OPTICS A Superior Laboratory Microscope w/Advanced Optics & Illumination
With the BA210 Binocular microscope, Motic is setting a new standard in microscope performance through improvements both optically and mechanically at the student level. This microscope is an exceptionally versatile laboratory microscope designed for the complex and rigorous work performed in advanced teaching and laboratory situations. It's a superior scientific instrument that was created to perform meticulous analysis of microorganisms and cells in professional settings.
The BA210 Binocularís superior lighting comes standard on this series with a built-in transmitted 6V/30W Quartz Halogen illumination. This highly sophisticated system includes intensity controls that provide users with a powerful, adjustable light source to meet the delicate and detailed lighting requirements for viewing virtually any specimen. In fact, the quartz halogen illumination will dramatically improve user viewing of even the most obsolete specimens.
Slides rest securely on the microscopes large, hard coated, chemical resistant 140x135mm stage with an expansive 76x30mm travel range. A key component of this remarkable stage is its completely redesigned slide holder that guarantees a tighter grip and ensures easy repeatable scanning of numerous slides throughout your day-to-day routine.
This binocular microscope is easily upgradeable to allow for additional phase contrast & darkfield methods, thus ensuring that this model will provide maximum functionality to all users, in a variety of settings and applications. A full balance of options and accessories are available to ensure that your microscope is available for customization to meet your specific microscopy needs.
WF10X/FN20 eyepieces are compensated, removing the yellow fringe
A Siedentopf head with multi-layer coated Semi-Plan objectives
Stage slide holder features an exceptionally wide distance between slide holder fixing screws. This allows users greater slide stability and the flexibility to view specimens contained in a wide variety of different types of sample holders
A newly designed condenser with a position lock for the featured quartz halogen illumination to allow for optimal light intensity
Stage and condenser support assembly has been specially designed to increase the movement range for the condenser. The entire assembly was created specifically so the upper position of the condenser could be adjusted within 1mm from the specimen, thereby avoiding the common problem of having ground glass images form on the image plane. This revolutionary design also prevents the left hand focusing control knob from getting too close to the condenser focusing knob, which would otherwise interfere with optimal microscope operation
Newly designed coarse and fine focusing knob mechanism
To protect the system from fungus formation in high-humidity environments, an anti-fungus coating is used to prolong the life of both the microscope and objectives
Ultra-smooth surface paint and finish improve scratch resistance
Included accessories: Built-in USB cable and universal power supply, Motic Images Plus software, dust cover, calibration slide, and blue daylight filter
Student compound binocular microscope
30 degree [F.N. 20]
CCIS Optical System (Color Corrected Infinity System)
Coaxially positioned control & fine knobs, 25mm stroke. Min. increment 2µm. Coarse motion torque adjustable. Brass Gears.
