Alexis Scientific™ Clearshot™ 600 Digital Camera Adapter System
WORLD'S LARGEST selection of Digital Camera Adapters
for your Microscope (or Telescope).
Unlike other systems, the Clearshot 600 is
designed and manufactured in Germany
for the highest
performance and quality.

Works with a huge selection of camera and microscope combinations.  Mounts literally hundreds of cameras to your microscope.  Also works with SLR and C/CS-mount cameras!...read more

A complete system consists of both the Clearshot 600 and a camera-specific attachment ring.

and...just to put your mind at ease, it also comes with a 30 day return policy (details)

Click for larger picture

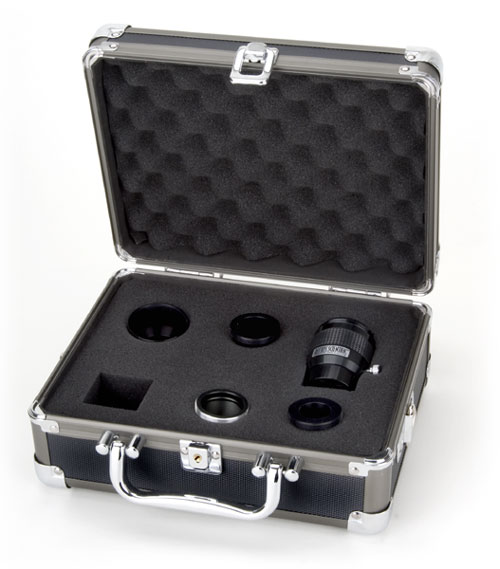

Clearshot 600 Digital Adapter Kit

click picture for larger image

To see the appropriate Clearshot 600/Attachment Ring Bundle for your camera, please select below:





Or if you know the part number, enter it here and click go.

For a list of all cameras, click here

The Clearshot 600 is simply the most versatile digital camera adapter available at any price. This kit is perfect for connecting most digital cameras with threaded lenses to most microscopes. Also works for 35mm SLR and DSLR Cameras. Specially designed to reduce vignetting (pipe view effect) when using digital cameras with large lenses. The Clearshot 600 kit includes adapters to fit optical devices with any of the following attachments; C-Mount, C/S-Mount, T-Mount, 23mm Eyepiece Port, 30mm Eyepiece Port, and 1.25" Eyepiece Ports. It has an industry standard "T" thread on top and uses a camera-specific attachment ring to mate to your particular digital camera. We carry the world's largest selection of attachment kits to fit hundreds of popular digital cameras and we update them regularly so your Clearshot 600 will not become obsolete when it is time to upgrade to a new camera.

Click for larger picture

The Clearshot 600 Lens Assembly

The lens assembly is the main part of the system. It is a wide field 40mm four element symmetrical (Plossl) lens assembly mounted in a custom mechanism.

Click for larger picture

Clearshot 600 With Adjustable Collar Extended

The lens assembly also features a sliding collar which does several things.  It allows easy removal of the camera, it allows you to adjust magnification when used with a 35mm camera, and allows adjusting the position to minimize vignetting.

Click for larger picture

Clearshot 600 w/Combination 30mm Eyetube & C/CS Mount Adapter Installed

Here it is shown with the included 30mm microscope eyetube adapter installed. This tube is also internally threaded with a female "C" or "CS" mount for attaching to this common photo tube style. For further discussion on the C/CS optical mount, click here.

Click for larger picture

Clearshot 600 w/23mm Microscope Eyetube Adapter Installed

Here it is shown with the included 23mm microscope eyetube installed. This adapter is most commonly used for compound microscopes in place of an eyepiece. It will also fit 23mm I.D. photo tubes.

Click for larger picture

Clearshot 600 with T-mount Adapter Installed

Shown with the included T-Mount adapter installed. The T-Mount adapter is a common microscope optical mount. For further discussion on this common photo standard, click here.

Click for larger picture

Clearshot 600 w/1.25" Telescope Adapter Tube Installed

Shown with the included 1.25" telescope eyetube adapter.

Clearshot 600 shown mounting a digital camera to the eyetube of a binocular compound microscope using the 23mm adapter (left).  It also works just as good on a monocular (single eyetube) microscope.  Also shown mounted on a trinocular stereo (dissecting) microscope using the C-mount adapter (right).
