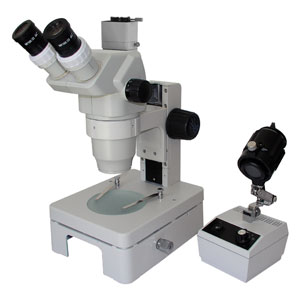

Stereo Zoom Microscope Bundle- Trinoc, Compact Track Stand & Halogen Light, 1.3meg Camera A cutting-edge microscope that’s cut out perfectly for the task at hand
The GS Series stereo microscopes combine a compact design with super-sharp 3-D imaging and an extraordinarily wide field of view which makes this microscope an ideal choice for high-throughput inspection stations, Q.A. and engineering labs, higher education, hobby settings, conference rooms or any place you want to quickly and easily magnify a sample.
The GS’s cutting-edge precision optics produce excellent contrast and high-definition 3-D images all the way to the edge of the field of view. The 2X to 270X total magnification range and long working distance make the GS flexible enough to view a wide variety of objects.
For users with space limitations, the Compact Track Stand w/Transmitted Halogen (70mm) Mirror Base is the perfect choice. Compact and highly portable, this stand allows users to position the GS head easily and accurately on a vertical track as well as manually adjust light control using the manual adjustable angle of the mirror base.This stand is ideal for inspection of small parts up to 10".
With this trinocular/camera combo, the third (trinocular) port is used to mount a Video Graphics Array or “VGA” camera for processing micro-image acquisition and storage. The VGA camera on this particular microscope is a digital camera that stores its images directly inside the camera's memory or onto an attached memory card. The images can then be transferred to a computer for printing or sent to a TV screen for public viewing by connecting a cable between the camera and the second device or by removing the memory card and inserting it into a card reader.
ILLUMINATION OPTIONS:
No Illumination
Dual Fiber Optic Gooseneck
With Dual Gooseneck lighting, the GS Digital provides users with cool, electronically isolated white lights that stay precisely where you place them. The GS Digital can also be used with no added light source.
Fiber Optic Ring Light
With the Quartz-Halogen Fiber Optic Ring Light, the GS Digital provides users with 360° of shadow free, on-axis, high intensity illumination. The ring distributes an intense light to the subject in a small mechanical package optimizing accessibility to the stage and specimen. The GS Digital can also be used with no added light source.
Fluorescent Ring Light
With the Fluorescent Fiber Optic Ring Light, the GS Digital provides users with 360° of shadow free, on-axis, high intensity illumination. The ring distributes an intense light to the subject in a small mechanical package optimizing accessibility to the stage and specimen. The GS Digital can also be used with no added light source.
LED Ring Light
With the LED Ring Light, the GS Digital provides users with 360° of adjustable, flicker-free illumination. This is especially useful for inspection and assembly environments, and is also well suited for video and machine vision applications. The GS Digital can also be used with no added light source.
FEATURES:
Stereo zoom trinocular body with two horizontal zoom knobs
High resolution stereo image
Compact and lightweight
Continuously variable zoom range with 1:6.7 ratio
Greenough design features two matched optical systems with synchronous movement
Wear-resistant hardened roller-bearing focusing drive for smooth operation
6.7X ~ 45X Continuous Zoom Standard (w/10X Eyepieces)
2X ~ 270X Max Magnification (w/Optional Lenses)
Adjustable interpupilliary distance: 52 mm - 75mm
Wide field of view: 1 mm – 109.5 mm (w/optional lenses)
Long working distance (100 mm w/standard lens)
Anti-fungus properties
Many accessories, lighting, stand, and head options
Head
Trinocular
Standard Zoom
6.7X ~ 45X (w/10X Eyepieces)
Optional Zoom
2X ~ 270X (w/optional lenses)
Zoom Body
0.67X ~ 4.5X
Zoom Ratio
1:6.7
Included Eyepiece
WF10X/FN22mm *Note: eyepieces will hold a 24mm reticle
Optional Eyepieces
15X (WF15X/FN16mm)
20X (WF20X/FN12mm)
25X (WF25X/FN11.5mm)
30X (WF30XFN9) *Note: 20X eyepieces will hold a 24mm reticle
Auxiliary Lenses
0.3X, 0.5X, 0.75X, 1.5X, 2X
Working Distance
100mm (w/no auxiliary lens installed)
Field of View
1mm ~ 109.5mm (w/optional lenses)
Interpupillary Adjustment
55mm ~ 75mm
Eyepiece Diopter Correction
±5 Diopter
Angle of View
45º
Viewing Head Rotation
360º
Stand Type
Compact Track Stand w/Transmitted Halogen Illumination
Travel
250mm
Vertical Post Diameter
1.26-Inch(32mm)
Vertical Post Height
12-Inch (305mm)
Lighting
12V 15W Halogen top
Lighting Adapter
AC 85-265V 50/60Hz
Base Size
12.6x12.01.2.36-Inch (320x305x60mm)
Plate
95x5mm Glass Plate
Camera
1.3 megapixel VGA
Resolution
SXGA 1280 x 1024 x 24 bit true color
Color Depth
RGB 8:8:8
Refresh Rate
30fps @ 1280 x 1024 per frame
Memory
SD card (under 2 gig)
File Format
BMP
Detector Size
1/2.5 in.
Pixel Size
4.4um x 4.4um
RGB
Adjustable - Auto or Manual Mode
White Balance
Auto or Manual
Exposure
Auto or Manual
Contrast
Manually Adjustable
Crosshairs
White Electronic (Overlay) Crosshairs (can be turned on or off)
