Scratch & Dig Reticle - 10X Scratch/Dig

Item No:    S-14423
Quantity:
Glass Diameter/
Price Each:



Scratch & Dig Reticle - 10X Scratch, 10X Dig per MIL-PRF-13830.

Both the SCRATCH lines and DIG circles are designed to be used with a 10X objective.

A = Actual dimension on reticle
B = Dimension at target when using 10x objective

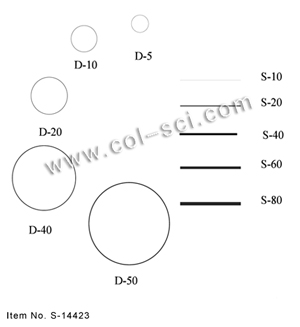

ITEM:     A      /      B
S-10: 0.1mm / 0.01mm
S-20: 0.2mm / 0.02mm
S-40: 0.4mm / 0.04mm
S-60: 0.6mm / 0.06mm
S-80: 0.8mm / 0.08mm

D-5: 0.5mm / 0.05mm
D-10: 1mm / 0.1mm
D-20: 2mm / 0.2mm
D-40: 4mm / 0.4mm
D-50: 5mm / 0.5mm

DIG dimensions are I.D.

See also: S-14422 Scratch & Dig Reticle - 10X Scratch, 1X Dig
