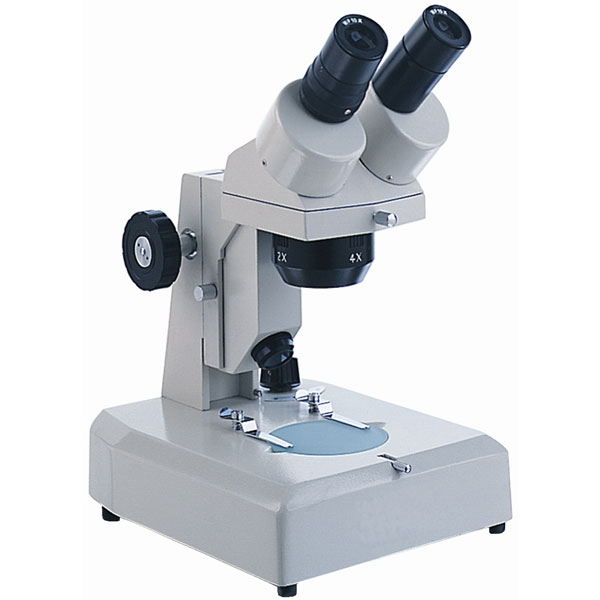

Stand
with 45 degree inclined binocular stereo head, rotatable
360 degrees. |
|
10X Widefield eyepieces with rubber eyeguards.
Rotatable and locked in with
(removable) set-screw. Right eyepiece focusable. |
|
Turret style
1X and 3X objectives (E‑01300) or 2X and 4X objectives (E‑01310). |
| Total
Magnification 10X/30X (E‑01300) or 20X/40X
(E‑01310). |
|
Dual Light - Top -- tiltable 15W variable
intensity halogen. Bottom -- cool fluorescent. |
|
Two
75mm
stage plates. One frosted glass and one
black and white contrast (flips over). |
|
Dual focusing knobs,
rack & pinion mechanism. |
|
Arm style stand. Head cannot fall. |
|
Switch for power on top/bottom/both. Top light intensity
control on side. |
|
Also available: Wide variety of reticles (uses 26mm diameter) which can be purchased here.
Note: Reticle use requires a
26mm c-ring (S‑14012) |
|
Power Supply: 115v/60hz with
North American style power cord. |
| Vinyl
Dust Cover. |
| Five
year limited warranty. |
|
Stand Base Size: 5"W x 9"D x 2.4"H |
|
Overall
Size: 5"W x 9"D x 13"H |
|
Net Weight:
7.4
lbs. |
