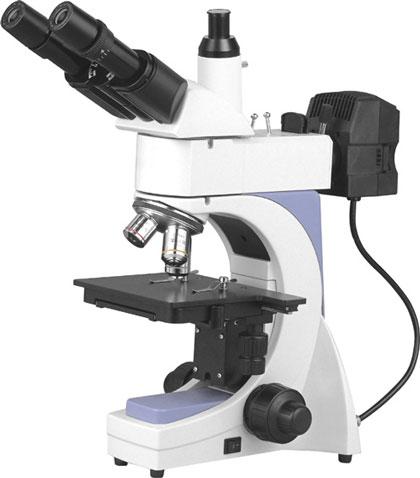

The MM-02010
trinocular metallurgical microscope is ideal for research institutions,
factories and educational institutions. The microscope can be used for
studying metallography, heat treatment, ceramics and other areas
requiring high magnification and reflected light analysis.
FEATURES
- Excellent Infinity optical system.
- High magnification objectives with long working distance (up to 3.7mm
with 40x objective)
- Magnification range of 40x to 400x standard, 32x to 1000x
with optional lenses.
- Ergonomic and comfortable operation with low position control knob
- Triangular structure makes the instrument very steady and saves working space
- Binocular viewing head
- Widefield10x eyepieces standard. WF8x and WF12.5x
available options
- Infinity plan achromatic objectives: 4x, 10x, 40x standard.
Optional 20x and 80x available.
- Quadruple nose piece
- Cross table mechanical stage: 150 x 140mm; Movement: 75 x 50mm
- Illumination: Kohler, epi-illuminator with iris aperture diaphragm and iris field diaphragm. 120V/6V 20W halogen bulb with adjustable brightness.
Includes filters: blue, green, yellow and ground glass
FULL MICROSCOPE SPECIFICATIONS
& AVAILABLE ACCESSORIES
The MM series includes a C-Mount
adapter in the third optical (vertical) port. A C-Mount allows you to
attach various microscopy cameras and digital still
camera adapters. |
