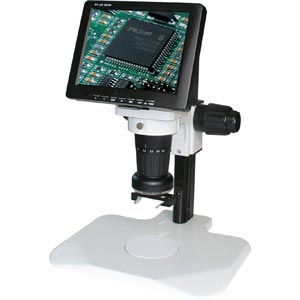

LCD Zoom Video Microscope, Track Stand Easy to use and extremely versatile
Now you can view your magnified target using a bright, clear monitor rather than microscope oculars. While this is typically done using a camera/computer combination, sometimes that is more complexity than the situation requires. Even when using just a video camera and separate monitor you have to worry about positioning the monitor someplace convenient, comfortable and ergonomic.
This LCD Zoom Microscope solves this problem perfectly with its built-in camera, monitor and ring light. You can't beat the convenience of a monitor which brings operator comfort, ease-of-use, multi-user viewing and many other advantages, plus the simplicity of an all-in-one solution. It also has a built-in, adjustable, LED ring light so the system is always ready to use.
Perfect for high-throughput inspection stations, Q.A. and Engineering labs, conference rooms, or anyplace you want to quickly and easily magnify a sample. You don’t have to worry about booting up a computer or any of the related complexity and maintenance headaches. It also has an extra video output so you can either drive a second video monitor, or if you want to be able to capture, annotate or measure the image you could plug it into a computer capture card. We recommend one of our cards that include the very powerful Images 2000 software.
The LCD Zoom Video Microscope features the following:
Compact and light weight.
8" LCD screen attached with adjustable image, contrast and brightness settings.
Wide viewing angle for mutliple-viewer applications, conference rooms, etc.
0.7 ~ 4.5x zoom body with detents. 1:6.5x zoom ratio.
35 degree oblique viewing attachment included when a straight-down view is not desirable.
Built-in laser pointer to quickly locate the view area.
Optional objectives: 0.3x, 0.5x, 0.75x, 1x (included), 1.5x, 2x. This allows a very wide magnification range.
Built-in variable intensity LED ring light.
In addition to the included stand, a wide variety of optional stands are also available.
Universal power supply. 85-265vac, 50/60h.
Total Magnification
3.3x ~ 147x
Zoom Body
0.7x ~ 4.5x, with detents
Zoom Ratio
1:6.5
Optional Objective Lenses
0.3x, 0.5x, 0.75x, 1x, 1.5x, 2x
Stand
Track Stand with single focus knob. Other optional stands available.
Video Output
BNC (PAL / NTSC)
Oblique Viewing
35° oblique viewing attachment included. Includes integrated 0.75x objective lens.
