Series H
Stereo Microscopes
DISCONTINUED - NO LONGER AVAILABLE
Now with
limited
LIFETIME WARRANTY!!
|
| Combines
precise optical performance and heavy duty quality with a newly enhanced illumination system.
Specially
designed incidental lamp can be directed precisely where
needed, includes intensity control. Incident light is
LED for brightness and long life. Transmitted
illumination is also LED.
|
|
 |
Model H-01110
has 1X and 3X objectives with 10X eyepieces for 10X and 30X total
magnification. |
|
Model H-01115
has 1X and 3X objectives with 15X eyepieces for 15X and 45X total
magnification. |
|
Model H-01120
has 1X and 3X objectives with 20X eyepieces for 20X and 60X total
magnification. |
|
Model H-02110
has 2X and 4X objectives with 10X eyepieces for 20X and 40X total
magnification. |
|
Model H-02115
has 2X and 4X objectives with 15X eyepieces for 30X and 60X total
magnification. |
|
Model H-02120
has 2X and 4X objectives with 20X eyepieces for 40X and 80X total
magnification. |
|
NOTE: Extra eyepieces are available in 5X (S‑05210), 10X
(S‑05190),
15X (S‑05505), and 20X
(S‑05510)
magnifications. See
chart.
Reticles also available: Single 10x eyepiece with either
5mm/100div reticle installed (S‑05192)
or 10mm/100div reticle installed (S‑05194).
100's of other reticle designs available separately
here. (Note: accepts
23mm O.D. reticles; only 10x
eyepiece accepts reticles.) |
Click
Here for the
Series H Magnification Chart
|
Series H Microscopes
Features & Specifications
|
|
Paired widefield 10x
eyepieces (Field No. 20) are supplied
standard, 45 degree inclined, with diopter adjustment left
side. Interpupillary adjustment from 55mm to 75mm.
Eyepiece O.D. 34mm. Eyepiece tube O.D. 33mm, ID. 30.5mm. |
|
Eyepieces
accept eyepiece reticle with 23mm O.D. (Note: only 10x
eyepiece accepts reticles.) |
|
Viewing Head can be rotated 360
degrees. |
|
Objectives
are parfocalled, parcentered and
achromatic. Magnification
changed by rotating objective turret 90 degrees to
positive click stops. |
|
Illumination: Top light is LED with adjustable beam & variable intensity control. Bottom light is LED. 4-position light control. |
|
Focusing:
Heavy-duty rack & pinion focusing with slip clutch
& tension adjustment. |
|
Base: 171mm
wide x 242mm deep (6-3/4 in. x 9-1/2 in.), includes two
80mm stage plates (frosted & black/white contrast),
and blue filter. Locked-on stage clips. |
|
Frame: All-metal,
heavy-duty post-mount (25mm O.D.) with locking collar,
permits up or down adjustment of viewing head. |
| Packed in
molded styrofoam container with rubber eyeshields,
dustcover and instruction brochure. |
|
Limited LIFETIME
Warranty |
|
Height:
325mm (13 in.) |
|
Net
Weight:
5.1 kgs (11.1 lbs) |
|
Ship
Weight: 7.3 kgs (16 lbs) |
|
|

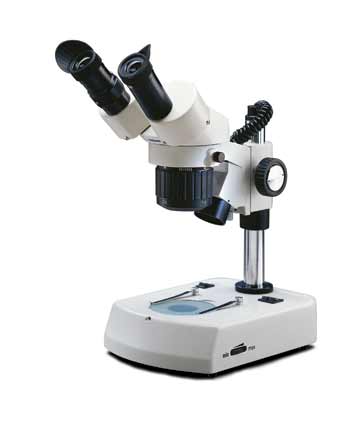

Series H Stereo Microscope
click image for larger picture
|
|
|
|
|
