The convenience and versatility of viewing
an image at 10x magnification, then zooming
continuously to close-up detail at 40x magnification (or
hidugher with extra lenses)...or
any point in-between.
Upright, unreversed image remains
in focus throughout zoom range.
Click for Magnification Chart
Click for Stands - Binoculars
Click for Stands - Trinoculars |
![](images/product/G-01110-Left.jpg) |
Series G Binocular &
Trinocular Microscopes
Features & Specifications
![bullet](_themes/wiam6004/bullet1.gif) |
45 degree inclined head with dual
diopters, interpupillary adjustment 54mm to 78mm. |
![bullet](_themes/wiam6004/bullet1.gif) |
Eyepieces:
Supplied
with WF10 eyepieces, and rubber eye shields. Accepts 23mm
diameter eyepiece reticle. Click
here for huge selection! Eyepiece tube O.D. 33mm, I.D. 30.5mm. |
![bullet](_themes/wiam6004/bullet1.gif) |
Viewing Head can be rotated 360
degrees. |
![bullet](_themes/wiam6004/bullet1.gif) |
Zoom ratio: 4:1
(10x through 40x with standard supplied objective and
eyepiece lensesU). Positive click
stops at 10x, 20x, 30x and 40x. Achromatic, color
corrected, parfocalled optical system provides sharp,
focused image throughout zoom range. |
![bullet](_themes/wiam6004/bullet1.gif) |
Auxiliary objectives available to change zoom range:
0.5x (S‑05120), 0.75x
(S‑05121) and 1.5x (S‑05122).
See chart.
Note: S‑05120 will not work with fixed arm microscopes
due to its required working distance. |
![bullet](_themes/wiam6004/bullet1.gif) |
Extra eyepieces are available in 5X (S‑05210),
10X (S‑05190), 15X (S‑05505),
and 20X (S‑05510)
magnifications. See
chart. |
![bullet](_themes/wiam6004/bullet1.gif) |
Reticles also available.
100's of reticles available here. Note: select
23mm diameter reticle. Eyepiece comes with reticle
retaining ring. Only 10x
eyepiece accepts reticles. |
![bullet](_themes/wiam6004/bullet1.gif) |
Available in both Binocular and Trinocular. Important
Note on camera magnification with trinocular
microscopes. |
![bullet](_themes/wiam6004/bullet1.gif) |
adapters: all trinocular versions include both T-mount
and C-mount photo
adapters at no additional cost. |
![bullet](_themes/wiam6004/bullet1.gif) |
Optional
S-05560
adapter permits mounting of various ring lights on
objective pod. |
![bullet](_themes/wiam6004/bullet1.gif) |
Heavy-duty rack
& pinion focusing has slip clutch to protect
mechanism, and tension adjustment. Focusing block fits
25mm diameter post. |
![bullet](_themes/wiam6004/bullet1.gif) |
Limited LIFETIME
Warranty |
|
|
Optional
Stands
for
Binocular Microscopes
Model G-01110
![bullet](_themes/wiam6004/bullet1.gif) | Post Stand with incident and transmitted illumination. |
![bullet](_themes/wiam6004/bullet1.gif) |
Top light LED with directional beam and brightness control. |
![bullet](_themes/wiam6004/bullet1.gif) |
Bottom light LED provides bright, cool light with virtually no heat. Extra long bulb life...up to 10,000 hours. |
![bullet](_themes/wiam6004/bullet1.gif) | Supplied with two 80mm stage plates (frosted glass and plastic black/white contrast), blue filter. |
![bullet](_themes/wiam6004/bullet1.gif) | Stand Length: 237mm (9.25 in.)
Stand Width: 170mm (6.63 in.)
Overall Height: 330mm (13 in.)
Post Diameter: 25mm
Maximum Specimen Height: 93mm
Net Weight: 4.9 kgs (10.8 lbs)
Individual ship weight: 7.7 kgs (17 lbs) |
|
![](images/product/G-01110-Left.jpg)
click image for large picture

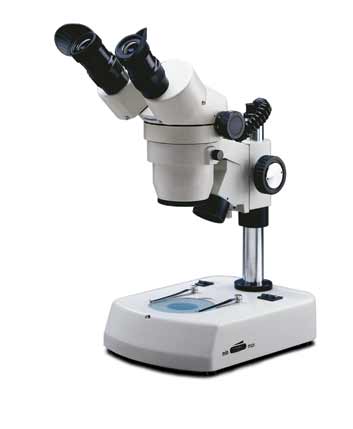

Model G-01110 Binocular Microscope
with a Post Stand
|
Model G-01120
![bullet](_themes/wiam6004/bullet1.gif) |
Fixed arm stand
with incident and transmitted illumination. |
![bullet](_themes/wiam6004/bullet1.gif) |
Top light 12v 15
watt halogen
(S-05713) with adjustable beam, brightness control. |
![bullet](_themes/wiam6004/bullet1.gif) |
Bottom light 115v 5
watt fluorescent
(S-05705)
, provides bright, cool light with virtually
no heat. |
![bullet](_themes/wiam6004/bullet1.gif) |
Extra long bulb
life...up to 10,000 hours. |
![bullet](_themes/wiam6004/bullet1.gif) |
Supplied with two 80mm stage plates (frosted glass
and plastic black/white contrast), blue filter. |
![bullet](_themes/wiam6004/bullet1.gif) |
Stand Length: 237mm (9.25 in.)
Stand Width: 170mm (6.63 in.)
Overall Height: 330mm (13 in.)
Maximum Specimen Height: 45mm
Net Weight: 4.9 kgs (10.8 lbs)
Individual ship weight: 7.7 kgs (17 lbs) |
|
![](images/product/G-01120-Left.jpg)
click image for large picture

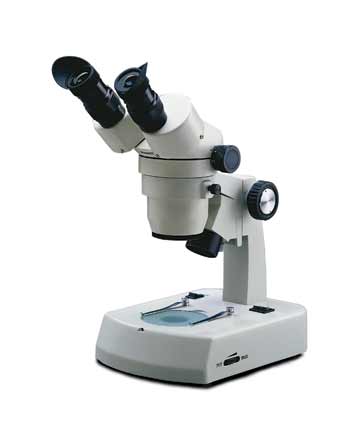

Model G-01120 Binocular Microscope with a Fixed Arm Stand
|
Model G-01130
![bullet](_themes/wiam6004/bullet1.gif) |
Universal Stand
features heavy construction and counterbalanced arm for
maximum stability with an adjustable
mounting post. It provides extreme flexibility in
positioning. |
![bullet](_themes/wiam6004/bullet1.gif) |
Professional, all
metal-stand. |
![bullet](_themes/wiam6004/bullet1.gif) |
Locking support
collar, permits up and down adjustment of viewing head to
accommodate different sized objects. |
![bullet](_themes/wiam6004/bullet1.gif) |
NOTE: No built-in
illumination is included with this model.
Lighting options. Please
also note that S-05560
ring-light adapter is required for use with a
ring-light. |
![bullet](_themes/wiam6004/bullet1.gif) |
Weight & Dimensions
- Total Stand Height:
386mm (15.4 in.)
-
Base Height: 55mm (2.2 in.)
-
Base Width: 200mm (8 in.)
-
Post Diameter: 25mm
-
Vertical Post Length: 331mm (13.2 in.)
-
Distance between the bottom edge of objective lens and the work surface
when horizontal bar is adjusted to min. or max. height:
With
Pivot Arm up: Min 170mm (6.8 in.),
Max 515mm (20.6 in.)
With
Pivot Arm down: Min 58mm (2.3 in.),
Max 260mm (10/4 in.)
- Throat depth, the distance between center of objective
lens (center of field of view) and edge of the base:
Min. 155mm (6.1 in.), Max 355mm (14 in.)
-
Stand Net Weight: 18.1 kgs (40 lbs)
-
Head & Focusing block net weight: 2.8 kgs (6.2 lbs)
-
Individual ship weight: 23.2 kgs (51 lbs) Packed in 2 ctns.
|
|
![](images/product/G-01130-Left.jpg)
click image for large picture

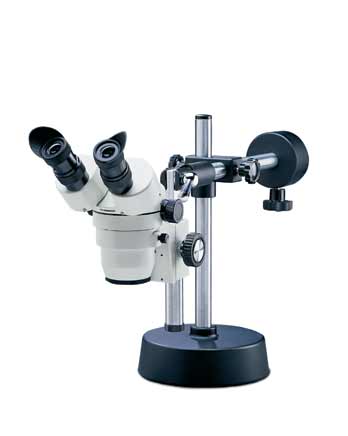

Model G-01130 Binocular Microscope
with a Universal Stand
|
Optional Stands
for Trinocular Microscope
Model G-01210
![bullet](_themes/wiam6004/bullet1.gif) |
Post Stand with
incident and transmitted illumination. |
![bullet](_themes/wiam6004/bullet1.gif) |
Top light LED with directional beam and brightness control. |
![bullet](_themes/wiam6004/bullet1.gif) |
Bottom light LED provides bright, cool light with virtually no heat. Extra long bulb
life...up to 10,000 hours. |
![bullet](_themes/wiam6004/bullet1.gif) |
Supplied with two 80mm stage plates (frosted glass
and plastic black/white contrast), blue filter. |
![bullet](_themes/wiam6004/bullet1.gif) |
Stand Length: 237mm
(9.25 in.)
Stand Width: 170mm (6.63 in.)
Overall Height: 330mm (13 in.)
Post Diameter: 25mm
Maximum Specimen Height: 93mm
Net Weight: 4.9 kgs (10.8 lbs)
Individual ship weight: 7.7 kgs (17 lbs) |
|
![](images/product/G-01210-Right.jpg)
click image for large picture

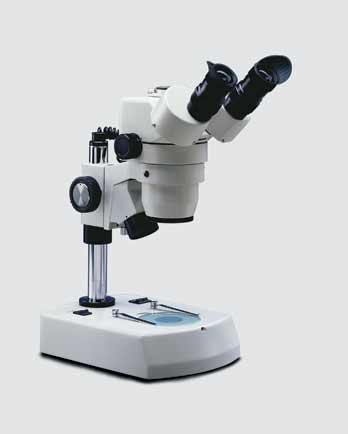

Model G-01210 Trinocular
Microscope
|
Model G-01220
![bullet](_themes/wiam6004/bullet1.gif) |
Fixed arm stand
with incident and transmitted illumination. |
![bullet](_themes/wiam6004/bullet1.gif) |
Top light 12v 15
watt halogen
(S-05713) with adjustable beam, brightness control. |
![bullet](_themes/wiam6004/bullet1.gif) |
Bottom light 115v 5
watt fluorescent
(S-05705) provides bright, cool light with virtually
no heat. |
![bullet](_themes/wiam6004/bullet1.gif) |
Extra long bulb
life...up to 10,000 hours (fluorescent). |
![bullet](_themes/wiam6004/bullet1.gif) |
Supplied with two 80mm stage plates (frosted glass
and plastic black/white contrast), blue filter. |
![bullet](_themes/wiam6004/bullet1.gif) |
Stand Length: 237mm
(9.25 in.)
Stand Width: 170mm (6.63 in.)
Overall Height: 330mm (13 in.)
Maximum Specimen Height: 45mm
Net Weight: 4.9 kgs (10.8 lbs)
Individual ship weight: 7.7 kgs (17 lbs) |
|
![](images/product/G-01220-.jpg)
click image for large picture

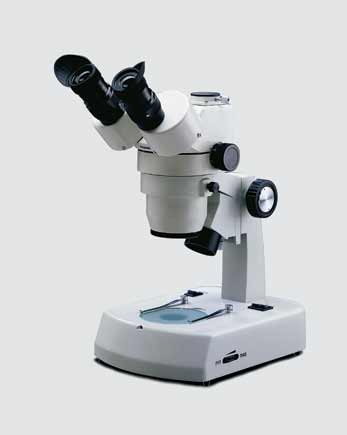

Model G-01220 Trinocular Microscope
with a Fixed Arm Stand
|
Model G-01230
![bullet](_themes/wiam6004/bullet1.gif) |
Universal Stand
features heavy construction and counterbalanced arm for
maximum stability with an adjustable
mounting post, it provides extreme flexibility in
positioning. |
![bullet](_themes/wiam6004/bullet1.gif) |
With an adjustable
mounting post, it provides extreme flexibility in
positioning. |
![bullet](_themes/wiam6004/bullet1.gif) |
Professional, all
metal-stand. |
![bullet](_themes/wiam6004/bullet1.gif) |
Locking support
collar, permits up and down adjustment of viewing head to
accommodate different sized objects. |
![bullet](_themes/wiam6004/bullet1.gif) |
NOTE: No built-in
illumination is included with this model.
Lighting options. Please
also note that S-05560
ring-light adapter is required for use with a
ring-light. |
![bullet](_themes/wiam6004/bullet1.gif) |
Weight & Dimensions
- Total Stand Height:
386mm (15.4 in.)
-
Base Height: 55mm (2.2 in.)
-
Base Width: 200mm (8 in.)
-
Post Diameter: 25mm
-
Vertical Post Length: 331mm (13.2 in.)
-
Distance between the bottom edge of objective lens and the work surface,
when horizontal bar is adjusted to min. or max. height:
With
Pivot Arm up: Min 170mm (6.8 in.),
Max 515mm (20.6 in.)
With
Pivot Arm down: Min 58mm (2.3 in.),
Max 260mm (10/4 in.)
- Throat depth, the distance between center of objective
lens (center of field of view) and edge of the base:
Min. 155mm (6.1 in.), Max 355mm (14 in.)
-
Stand Net Weight: 18.1 kgs (40 lbs)
-
Head & Focusing block net weight: 2.8 kgs (6.2 lbs)
-
Individual ship weight: 23.2 kgs (51 lbs) Packed in 2 ctns.
|
|
click image for large picture

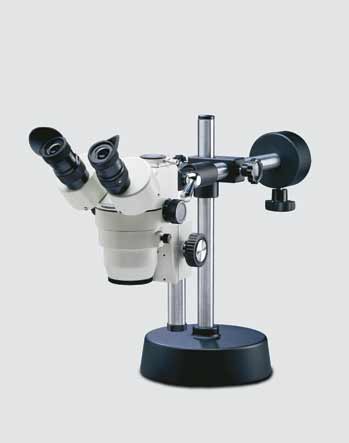

Model G-01230 Trinocular Microscope
with a Universal Stand
|
